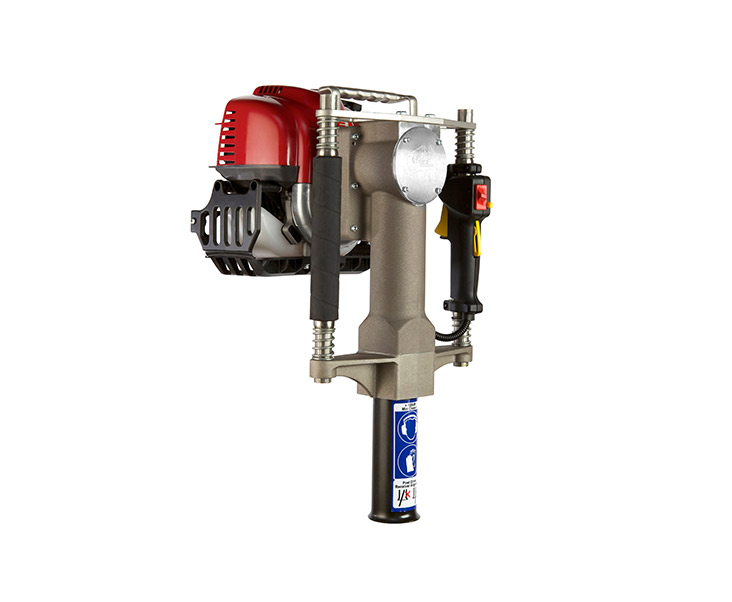

Christie Post Driver
The Christie Post Driver was developed by Christie Engineering to suit the harsh Australian environment. Weighing13.5kg for the CHPD52 and 15.5kg for the CHPD78, both models are lightweight and portable but still able to drive posts as swiftly as much larger and heavier hydraulic and pneumatic tools. The high impact hammer action of 1720BPM will drive steel fence pickets into the hardest ground in a matter of seconds and the portable design allows operators to move along a fence line with ease.
Description
The driver uses an efficient Honda GX35 4-stroke motor to give the best service life possible. The CHPD52 has a 52mm receiver guide tube which allows most standard posts and pipe up to 50mm diameter, as well as timber 35mm square to be driven, while the CHPD78 has a redesigned lower hammer section to allow much larger posts and pipe to be driven right up to 75mm diameter without any other adapters. The redesigned lower hammer transfers the impact to the post more efficiently allowing larger posts to be driven with ease.
| Blows Per Minute | 1720 |
| Joules | 26 |
| KW | 1.0 (1.3HP) at 7,000 rpm | 4-stroke, overhead cam Trigger throttle with integrated stop button | Spring isolated hand grips |
| Fuel Consumption | 0.71 L/h at 7,000 rpm Meets strictest worldwide emission and noise req. |
| Starting System | recoil (pull start) |
| Rating | Continuous use on standard posts |
| Weight | 13.5kg for the CHPD52 15.5kg for the CHPD78 |
| Engine Warranty | 3 Year genuine Honda warranty |
| Post Driver Warranty | 12 months parts failure |
| Noise Level | >100dB Hearing protection required |
| Â POST | CHPD52Â | Â CHPD78 |
| Earth rod stakes |  * |
* |
| Standard star pickets and posts Diameter up to 52mm |
|
|
| Timber stakes up to 35mm square / Diameter less than 52mm |
|
|
| Pipe up to 50mm OD Such as 32NB pipe for sign posts 40NB pipe |
|
|
| Waratah® Gripfast® Trellis Posts | |
|
| Square steel sections and angle Up to 35mm square / 52mm diameter |
|
|
| Clipex® Beefy® Posts |  |
|
| Waratah® Galstar Maxy® Posts | |
|
| Square steel sections and angle to up to 50mm square / 76mm diameter |
|
|
| Posts up to 76mm diameter. Pipe up to 76mm OD Such as 50 to 65NB pipe for strainer posts, sign posts and guide posts |
|
|
*Â Â With optional CHPD GRND Earth Rod Reducing Bush (at cost)
With supplied CHPD78BUSH (78-52mmm Reducing Bush)
Additional information
| Models | CHPD52, CHPD78 |
|---|
Brand
Christie
